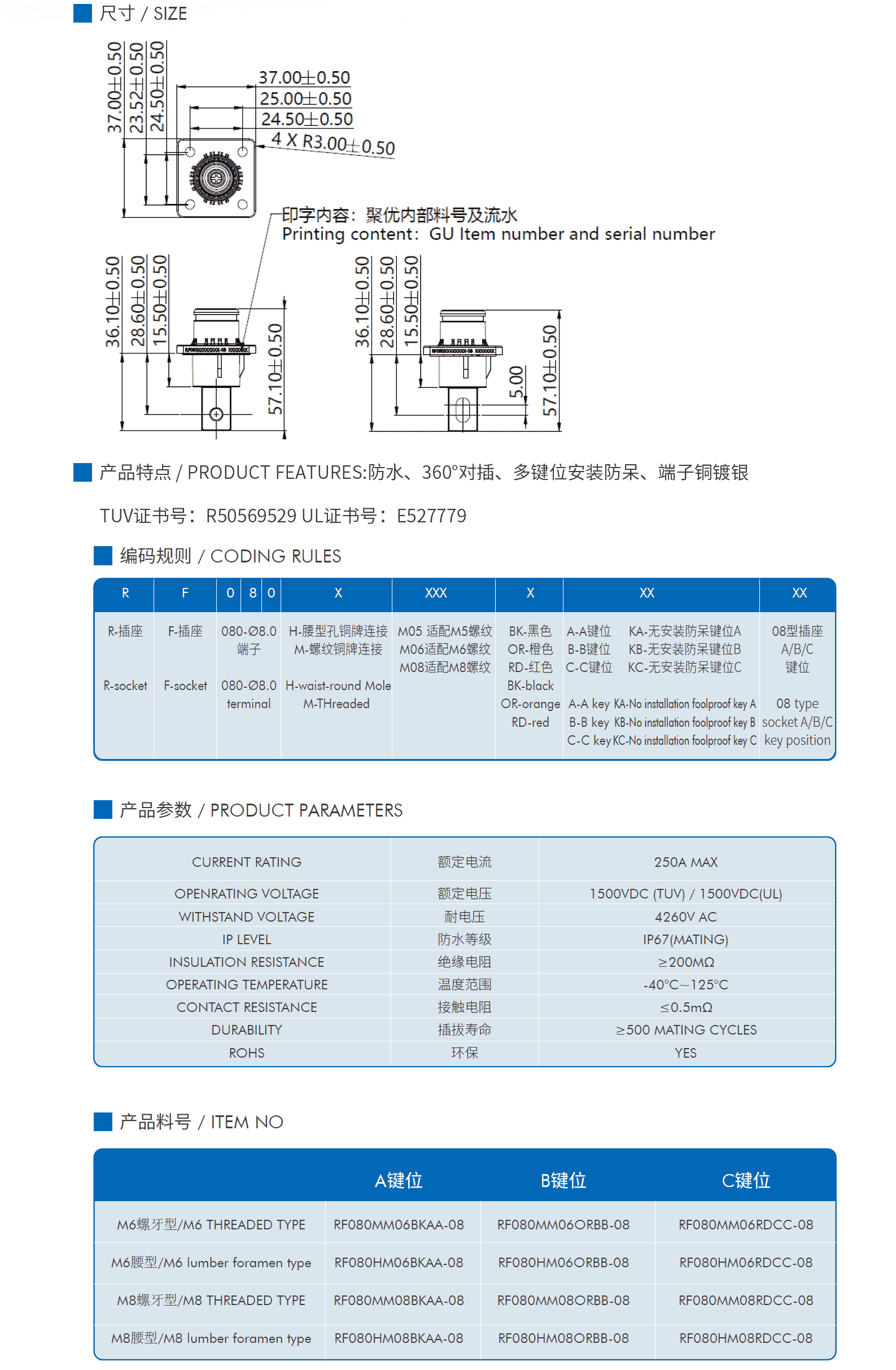

额定电流/CURRENT RATING
150A(35mm²)/200A(50mm²)/250A(70mm²)
额定电压/OPENRATING VOLTAGE
1500VDC (TUV) / 1500VDC(UL)
耐电压/WITHSTAND VOLTAGE
4260V AC
绝缘电阻/INSULATION RESISTANCE
≥200MΩ
温度范围/OPERATING TEMPERATURE
-40°C~125°C
接触电阻/CONTACT RESISTANCE
≤0.5mΩ
插拔寿命/DURABILITY
≥500 MATING CYCLES
